Introduction

Efficient environment control by understanding the crop growth rate is an important factor for planned crop production in plant factories (Mills, 2012). A photosynthetic rate that is closely affected by environmental factors is a common index to predict crop growth rate (Kim and Lieth, 2003; Pastenes et al., 2003). Although leaf photosynthetic rate is used to understand the photosynthetic rate of an entire plant (Shipp et al., 1998; Flexas et al., 2007; Kaipiainen and Pelkonen, 2007; Chang et al., 2009; Shin et al., 2011), it is not always representative (Elmore, 1980; Evans, 1996). To estimate accurate crop growth, more reliable photosynthetic models based on canopy photosynthetic rates are needed.

For investigating crop photosynthesis, several environmental factors, such as light intensity and CO₂ concentration, have been studied (Caporn and Wood, 1990; Wagner and Reicosky, 1992; Wheeler, 1992; Steduto et al., 2002; Song et al., 2016). Lettuce is a model crop that has been studied in various environmental conditions within a plant factory due to its short cultivation periods (Carporn, 1989; Shimizu et al., 2008). Due to the complex effects of environmental factors in the establishment of photosynthesis models (Johnson et al., 2010), photosynthetic rates should be measured under all combinations of environmental factors. For this reason, an effective measurement method considering system reactions to plants should be used while varying environmental factors (Mcdermitt et al., 1989; Suh et al., 2006; ).

In general, growth chambers have been used to grow or store plants for research purposes (Wheeler et al., 1996; Austin et al., 2016; Inkham et al., 2019) and to estimate photosynthetic or respiration rates of crops by measuring CO₂ concentration (Wheeler, 1992; Rochette et al., 1997). However, few studies have been conducted to calculate photosynthesis rate by measuring changes in CO₂ concentration while changing environmental factors inside the chamber. Previous attempts to measure canopy photosynthesis of plants using an open chamber system have been made, but there have been many disadvantages affected by airflow (Garcia et al., 2009). Quantitative analysis of environmental factors most affecting photosynthesis is required when several environmental factors change. In the photosynthetic process of plants, light has a fast reaction rate because it produces an immediate energy capture reaction through electron transfer in microsecond (Rappaport et al., 1998), while CO₂ has a slow reaction rate as it undergoes the process of diffusing into the cell through stomata (Evans and von Caemmerer, 1996). When combining the two factors of CO₂ concentration and light intensity, it is necessary to determine which should be held constant and which should be changed.

The objective of this study was to formulate a method for establishing canopy photosynthetic rate curves of romaine lettuce (Lactuca sativa L.) in a controlled growth chamber.

Materials and Methods

1. Plant and Growth Conditions

Romaine lettuce (Lactuca sativa L., cv. Asia Heuk Romaine) was hydroponically grown in a plant factory module of Seoul National University. Yamazaki nutrient solutions (Yamazaki, 1982) with an electrical conductivity (EC) of 1.2 dS∙m^-1 were used in deep-flow technique systems. The photosynthetic photon flux density in the module was maintained at 200 μmol∙m^-2∙s^-1 with an 8:1:1 ratio of RBW light-emitting diodes (LEDs; FGL-B1200, FC Poibe Co., Ltd., Seoul, Korea). The inside temperature, CO₂ concentration, and relative humidity were maintained at 23-25°C, 700- 1,000 μmol∙mol^-1, and 65-75%, respectively. Wind speeds around the plants were controlled using an electronic fan at 0.3-0.5 m∙s^-1. One hundred plants were transplanted into the plant factory module at three weeks after sowing and grown for 20 days at a planting density of 16 plants·m^-2.

2. Controlled Growth Chamber for CO₂ Measurement

Three identical closed acrylic chambers (1.0 × 0.8 × 0.5 m) with adjustable light intensity, temperature, relative humidity, and wind velocity were used for plant growth and CO₂ measurement (Fig. 1). The same LEDs used in the plant factory module were installed. For environmental control, sensors for CO₂ concentration, temperature, and relative humidity (S-VT200B, Soha Tech. Seoul, Korea) were installed. Indoor temperature and wind velocity were maintained at 19.5-22.5°C and 0.3-0.4 m∙s^-1, respectively. To scrub the moisture generated by transpiration, silica-gels were used to maintain the relative humidity at 65-75%. The CO₂ concentration in the chamber was measured for 90 min with and without plants at an initial CO₂ concentration of 1,000 μmol∙mol^-1 using a CO₂ analyzer (LI-820, LI-COR, Lincoln, NE, USA). After moving inside air out of the chamber by pump for measurement, the air passed through the sensor was circulated back into the chamber to prevent air leakage during measurement. The ventilation number in the chamber was calculated using the following formula:

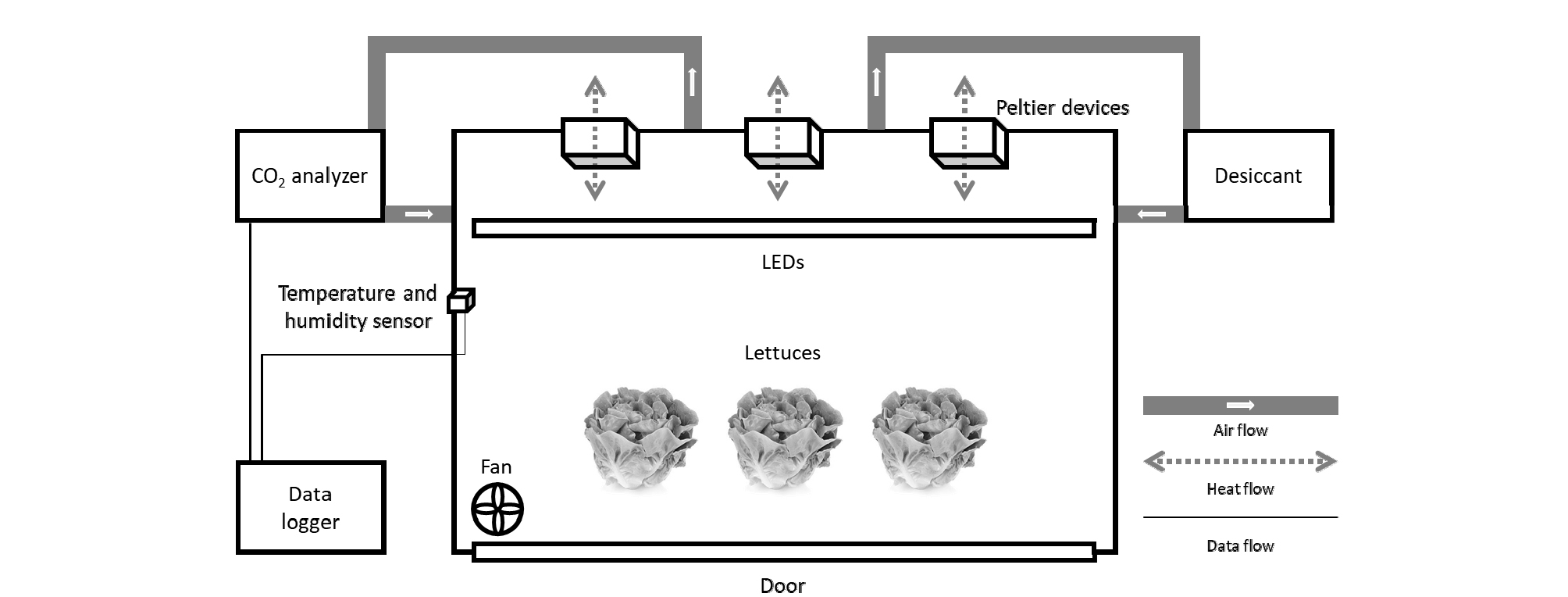

Fig. 1.

Schematic diagram of a controlled growth chamber with Peltier devices for temperature control and a fan for wind speed control.

where N is the ventilation number (h^-1), t is the measurement time (h), C₁ is the initial CO₂ concentration (μmol∙mol^-1), C₀ is the outside CO₂ concentration (μmol∙mol^-1), and C_t is the measured CO₂ concentration at t hour (μmol∙mol^-1). All measured data were stored via a data logger (CR-1000, Campbell Scientific, Logan, UT, USA).

3. Comparison of Plant Response to Light Intensity or CO₂ Concentration Change (Exp 1)

The changes in light intensity and CO₂ concentration were compared in two treatments. In Treatment 1, light intensity was adjusted to 340, 270, 200, and 130 μmol∙m^-2∙s^-1 at a fixed CO₂ concentration of 1,000 μmol∙mol^-1. In Treatment 2, CO₂ concentration was adjusted to 600, 1,000, 1,400, and 1,800 μmol∙mol^-1 at a fixed light intensity of 200 μmol∙m^-2∙s^-1. The CO₂ consumption was measured in 1 s intervals and saved in 5 s intervals. Whole canopy photosynthetic rates in Treatments 1 and 2 were compared at the same light intensity and CO₂ concentration.

The response of the growth chamber system was estimated using a time constant measured as the time required to reach 63.2% of the target value (Gross and Chabot, 1979):

where A, t, T, and Y are the mean target value, mean time (s), time constant, and target value after time t, respectively.

4. Comparison of Photosynthetic Rate at Light Intensity or CO₂ Concentration Change (Exp 2)

For further measurement of low light points with rapid change in photosynthetic rate and for additional measurement of high CO₂ concentration points for estimating saturation points, additional conditions for light intensity and CO₂ concentration were applied to each treatment. In Treatment 1 in Exp 2, the environmental conditions were applied identically to Treatment 1 in Exp 1 (340, 270, 200, and 130 μmol∙m^-2∙s^-1), but 60 μmol∙m^-2∙s^-1 light intensity was added. In Treatment 2 in Exp 2, the environmental conditions were applied identically to Treatment 2 in Exp 1 (600, 1,000, 1,400, and 1,800 μmol∙mol^-1), but 2,200 μmol∙mol^-1 CO₂ concentration was added.

The canopy photosynthetic rate was calculated by measuring CO₂ decrement for all conditions excluding the time lag identified in Exp 1. The time lag was divided into one min and six min intervals, and each canopy photosynthetic rate was calculated to confirm the response of the plants to the changes in light intensity and CO₂ concentration. The experiment was repeated three times. For comparison, the leaf photosynthetic rate was measured at the same conditions as for Treatment 1. A photosynthetic measurement system (LI-6400, LI-COR, Lincoln, NE, USA) was used for measurement, and three different measurements were repeated with different leaves. To compare the difference in canopy photosynthetic rate at fixed light intensity and CO₂ concentration between the two treatments, the canopy photosynthetic rates were calculated. In Exp 2, the same time lag calculated in Exp 1 was applied to each environmental factor.

Results and Discussion

1. Fresh Weight and Leaf Area according to Growth Stage

Both fresh weight and leaf area exponentially increased over time. The number of growth stages was five during the 25 day-growth period. Since leaf area and fresh weight did not show much increase from zero to five days after transplanting (DAT), and significant growth was recorded from day 6 to the last day of observation (20 DAT), stages 2, 3, and 4 were classified in five-day intervals. As growth stage progressed, fresh weight and leaf area of the lettuce exponentially increased and reached 97.3 ± 2.94 g and 872.0 ± 44.50 cm² at 20 DAT, respectively (Table 1).

Table 1. Fresh weight and leaf area of the lettuce at 0 to 20 days after transplanting (DAT).

2. Leakage of the Growth Chamber

For testing leakage of the chamber, CO₂ concentration decrement was measured with and without plants while maintaining similar environmental conditions (i.e., 1,010 μmol∙mol^-1 CO₂ concentration, temperature, and humidity at the same condition, and similar light spectrum). The CO₂ concentration after 5,000 sec without plants was 1,010 μmol∙mol^-1 (Fig. 2). The calculated ventilation number of the chamber using Eq. 1 was 0.039 h^-1. According to Wheeler (1992), leakage rate increases as chamber size increases. Due to the reasons stated above, closed growth chambers in the past have been manufactured in small sizes of 0.19 m³ (Dutton et al., 1988), 0.3 m³ (Knight et al., 1988), and 0.2 m³ (Schwartzkopf and Stofan, 1981). The 0.4 m³ chamber used in this study confirmed that CO₂ concentration measurements were adequately carried out. In measurement experiments lasting seven hours or more, there will arise a problem in calculating the canopy photosynthetic rates of lettuce due to chamber leakage. When measuring CO₂ consumption for longer periods, CO₂ leakage before and after the experiments should be calculated and considered in calculations of canopy photosynthetic rate. In addition, for photosynthesis measurements using custom chambers, it is recommended that the measurements be completed in a short period of time, changing the environmental factors of rapid response.

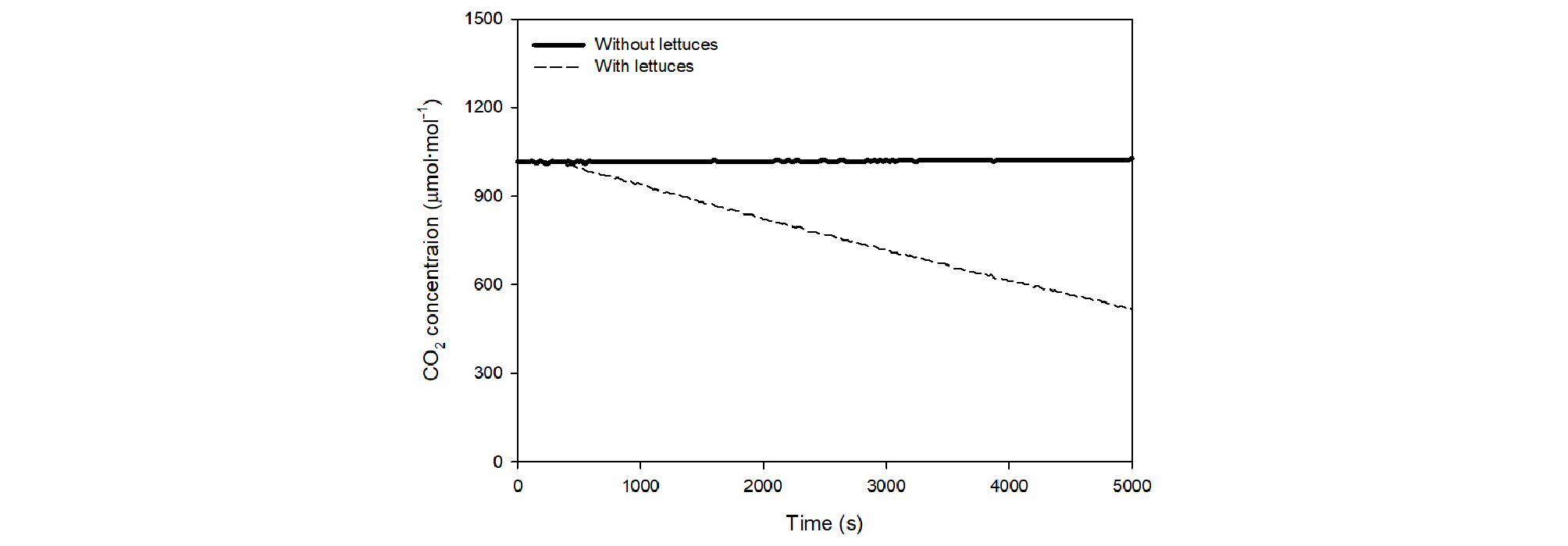

Fig. 2.

CO₂ concentration changes within the growth chamber with and without plants.

3. Measurement of Crop CO₂ Consumption and Time Constant

Figs. 3 and 4 show the measured CO₂ concentrations in Treatments 1 and 2 of Exp 1, respectively. The decrease in CO₂ concentration in the chamber by photosynthesis became greater as light intensity increased (Fig. 3). Similar trends were observed when a set point of CO₂ concentration became higher, but the decreasing slope in CO₂ concentration appeared smaller than the previous case shown in Fig. 3 (Fig. 4). For each condition, the change in second derivative of CO₂ concentration was used to calculate the time lag (Fig. 5). A time constant at a light intensity of 200 μmol∙m^-2∙s^-1 [case (c) in Fig. 5A] was 60 s (Fig. 5B). Time constants observed for different environmental conditions varied, but the average time constant in Treatment 1 (at fixed CO₂ concentration with varied light intensity) was 3.24 times shorter than that in Treatment 2. This result can be interpreted as lettuce being more sensitive to changes in light intensity than CO₂ concentration. The time formula in Fig. 5B is as follows:

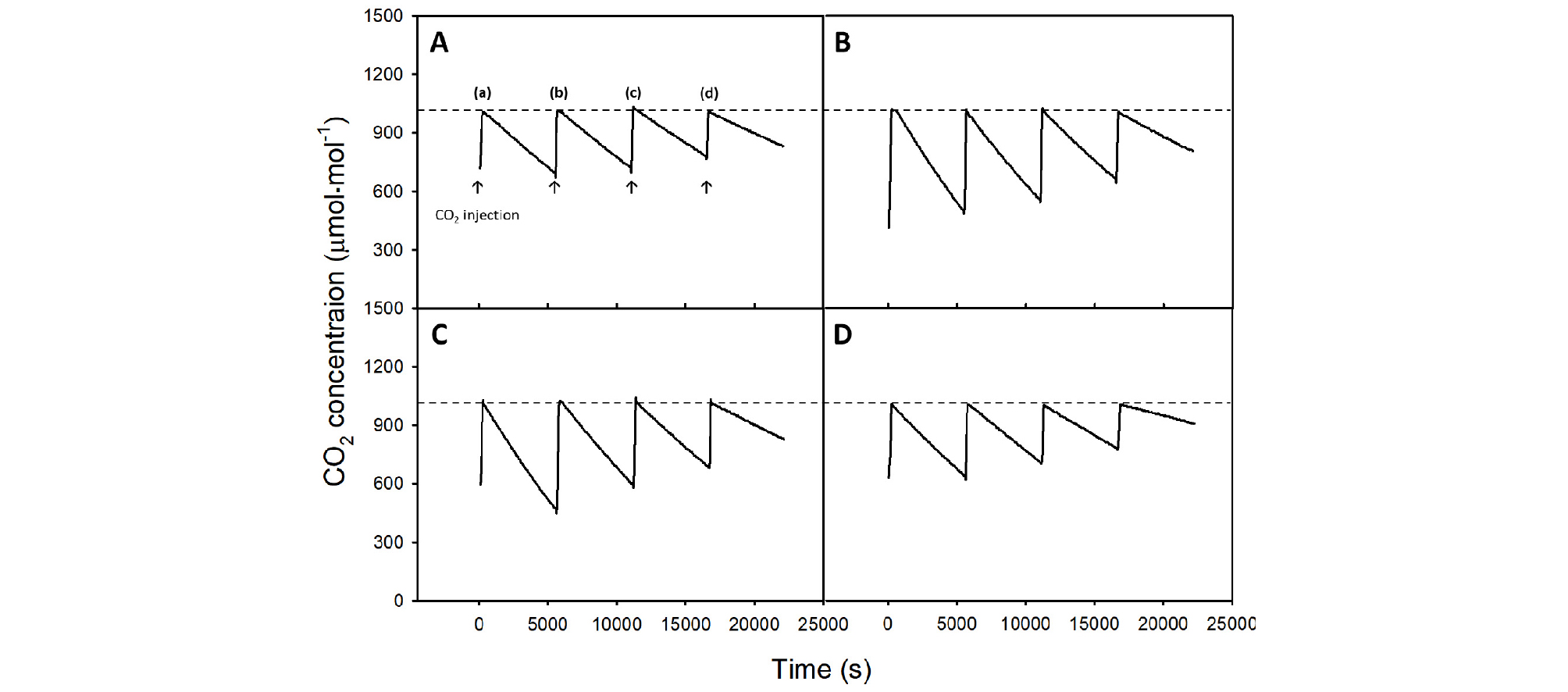

Fig. 3.

Change in CO₂ concentration according to light intensity of 340 (a), 270 (b), 200 (c), and 130 (d) µmol∙m^-2∙s^-1 at a CO₂ concentration of 1,000 µmol∙mol^-1. A, B, C, and D denote 5, 10, 15, and 20 days after transplanting, respectively.

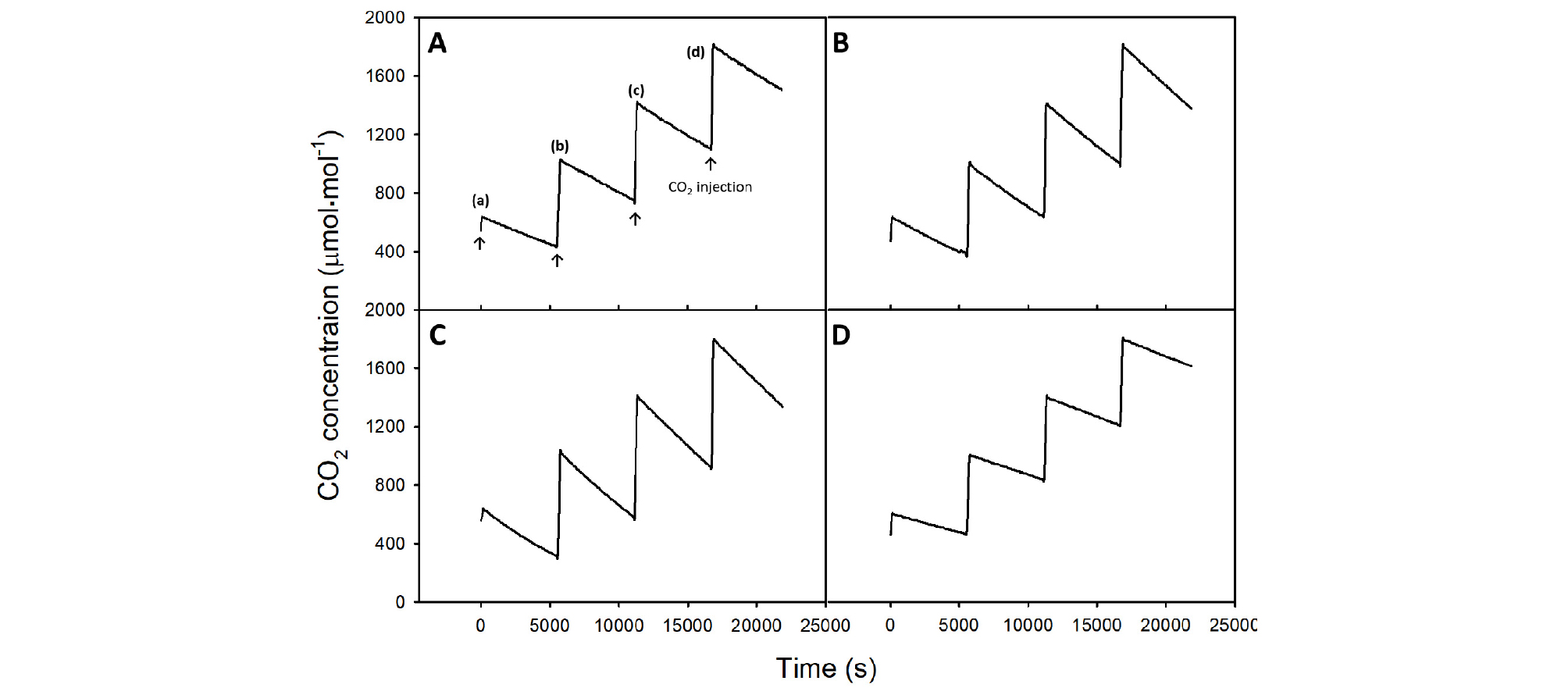

Fig. 4.

Change in CO₂ concentration according to CO₂ concentrations of 600 (a), 1,000 (b), 1,400 (c), and 1,800 (d) µmol∙mol^-1 at a light intensity of 200 µmol∙m^-2∙s^-1. A, B, C, and D denote 5, 10, 15, and 20 days after transplanting, respectively.

Fig. 5.

Slopes of CO₂ concentration in Treatment 1: the changes in first derivatives of CO₂ concentration at a light intensity of 340 (a), 270 (b), 200 (c), and 130 (d) µmol∙m^-2∙s^-1 with a fixed CO₂ concentration of 1,000 µmol∙mol^-1 at 10 days after transplanting, respectively (A) and the change in second derivative of CO₂ concentration in case (c) of A (B).

Langensiepen (2012) stated that the response time for plant adjustment will be different for each condition in an artificially-controlled environment. Bazot (2008) indicated that CO₂ concentration changes in the atmosphere bring about a complex response in plant physiology. As shown in Figs. 4A to 4D, an average of 550 μmol∙mol^-1 CO₂ gas was injected for 5 min in all treatments of Treatment 2. The sharp change in CO₂ concentration in the chamber within a short period of time (10 min) requires sufficient response time for the plants to adapt to the new environment. Sestak (1971) argued that it would take over one hour for plant stoma to fully adjust to changes in CO₂ concentration. To obtain various plant responses depending on CO₂ concentration, sufficient measurement time is required.

4. Comparison of Canopy Photosynthetic Rates at the Same Environmental Conditions

Fig. 6 shows the result of Exp 2. The photosynthetic rates measured at one and six min time lags were compared. The photosynthetic rates in Treatments 1 and 2 increased with increasing light intensity and CO₂ concentration, respectively. The deviation in Treatment 2 was larger than that in Treatment 1. In addition, differences in leaf photosynthetic rate and canopy photosynthetic rate increased with increasing light intensity and CO₂ concentration. The leaf photosynthetic rate according to light intensity appeared in the form of a typical saturation curve, but the canopy photosynthetic rate was not a saturation curve. The leaf and canopy photosynthetic rates both showed a linear increase with CO₂ concentration. When the time lag was set to six min, the changes in canopy photosynthetic rate and leaf photosynthetic rate were almost identical.

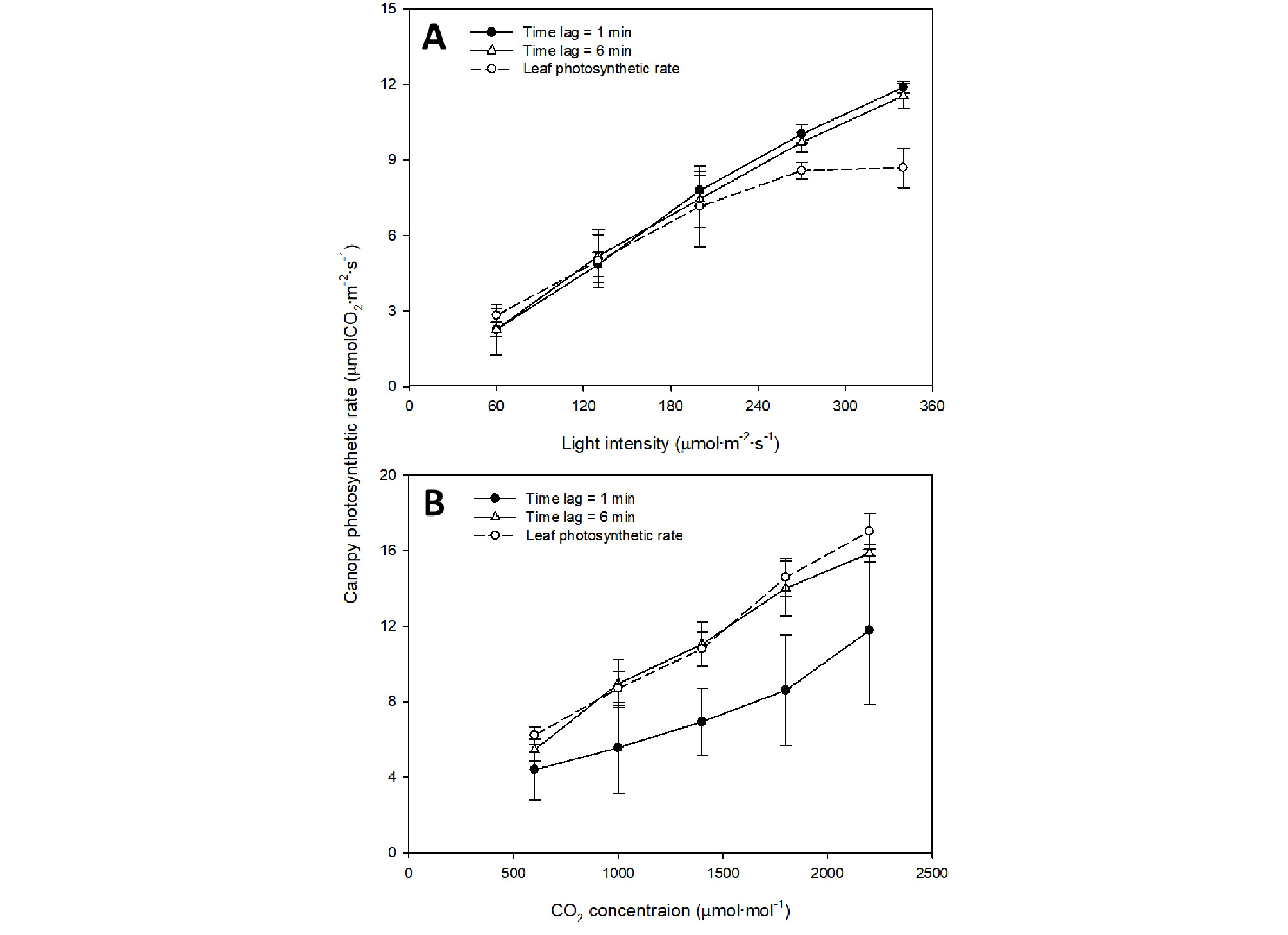

Fig. 6.

Comparison of canopy and leaf photosynthetic rates under the same light intensities and CO₂ concentrations. A and B denote changing light intensity at a CO₂ concentration of 1,000 µmol∙mol^-1 and changing CO₂ concentration at a light intensity of 200 µmol∙m^-2∙s^-1, respectively.

Table 2 shows the canopy photosynthetic rate, which was measured by varying the light intensity and CO₂ concentration, according to growth stage. Time lag was set to one min, and canopy photosynthetic rate was calculated according to the change of light intensity. As growth stage progressed, the canopy photosynthetic rate decreased from 12.38 to 9.61 μmol∙m^-2∙s^-1. Subsequently, the time lag was set to six min, and canopy photosynthetic rate was calculated according to change of CO₂ concentration. As growth stage progressed, the canopy photosynthetic rate decreased from 18.30 to 6.56 μmol∙m^-2∙s^-1. Of the various environmental factors, the biggest change with crop growth is light, which is because the shape of the crop changes. As the crops grow, the leaves of the lower part are covered by the leaves of the upper part, thereby reducing the light intensity per crop surface area even if they are subjected to the same light intensity (Del Pozo et al., 2007).

Table 2. Canopy photosynthetic rates measured at specific light intensity (200 µmol∙m^-2∙s^-1) and CO₂ concentration (1,000 µmol∙mol^-1) according to growth stages (days after transplanting, DAT) with different measurement patterns.

According to the research by Gross and Chabot (1979), there was a time lag of several seconds after the light intensity changed when measuring photosynthetic rates. In other words, light is the environmental factor allowing determination of crop response within a few seconds. According to Creese et al. (2014), the response to stimulation by stomatal conductance is driven by light compared with the response obtained from varying CO₂ concentration. When CO₂ is a control element, it is difficult to analyze the response by mechanical measurement within a short period of time. Therefore, to obtain reliable data, experiments for each environmental control element must be performed after appropriate time. There are established photosynthetic rate models that include light intensity, temperature, CO₂ concentration, and growth period (Jung et al., 2016; Jung et al., 2017). According to Johnson et al. (2010), the canopy photosynthetic rate with increasing light intensity does not appear in the form of a general saturation curve but in the form of a non-rectangular hyperbola curve. This is caused by inconsistent light intensity on the surfaces of all leaves due to the morphological characteristics of the crop. However, the change of CO₂ concentration was not influenced by crop architecture in small crops such as lettuces.

The canopy photosynthetic response of lettuce showed a faster adaptation to changes in light intensity, and adaptation to CO₂ concentration change required six times longer than that of light intensity (Fig. 6). Therefore, for faster measurements of canopy photosynthetic rate, it is efficient to vary the light intensity at a stable CO₂ concentration. Quantification of CO₂ consumption using growth chambers will help to establish efficient CO₂ enrichment methods for plant cultivation. This can also be coupled with photosynthesis models reflecting environmental factors in plant factories or greenhouses for management of crop cultivation.

Conclusions

A method to establish canopy photosynthetic rate curves of romaine lettuce (Lactuca sativa L.) using controlled growth chamber was developed in this study. The canopy photosynthetic rate was measured stably and quickly with a time lag of one min when changing light intensity at fixed CO₂ concentration; a longer time lag of six min was required with constant light intensity and variable CO₂ concentration. Using the chamber system, it was possible to accurately measure the canopy photosynthetic rate of lettuces by changing the light intensity. For canopy photosynthesis measurements with custom chambers, it is recommended to change the light and finish the measurement in a short time. This result is meaningful in that it established a method for measuring canopy photosynthesis with changing environmental factors in a closed chamber system. This method can contribute to establishment of multi-variable canopy photosynthesis models in the future.
